Press Selection Guide

Feel free to use this guide to find the best Dulytek heat press or DIY plate kit for your needs using our comparison guides below. A complete description of each press model can be found on its product page. Contact our company if you have more questions about our products.

Heat Presses

MODEL DM800 DM2 VE2.5 DW8000 DHP5 DHP7 DHP20 DE40K

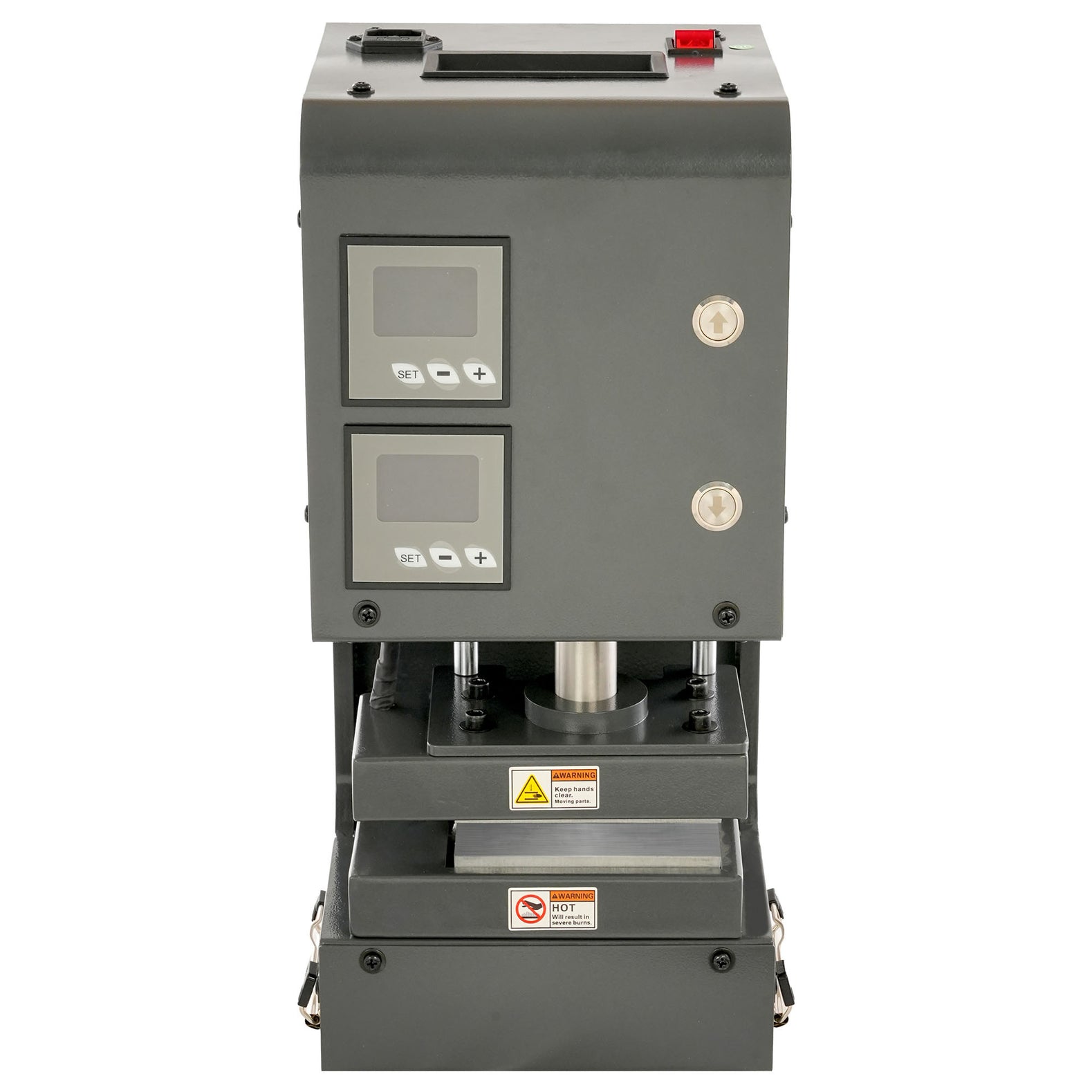

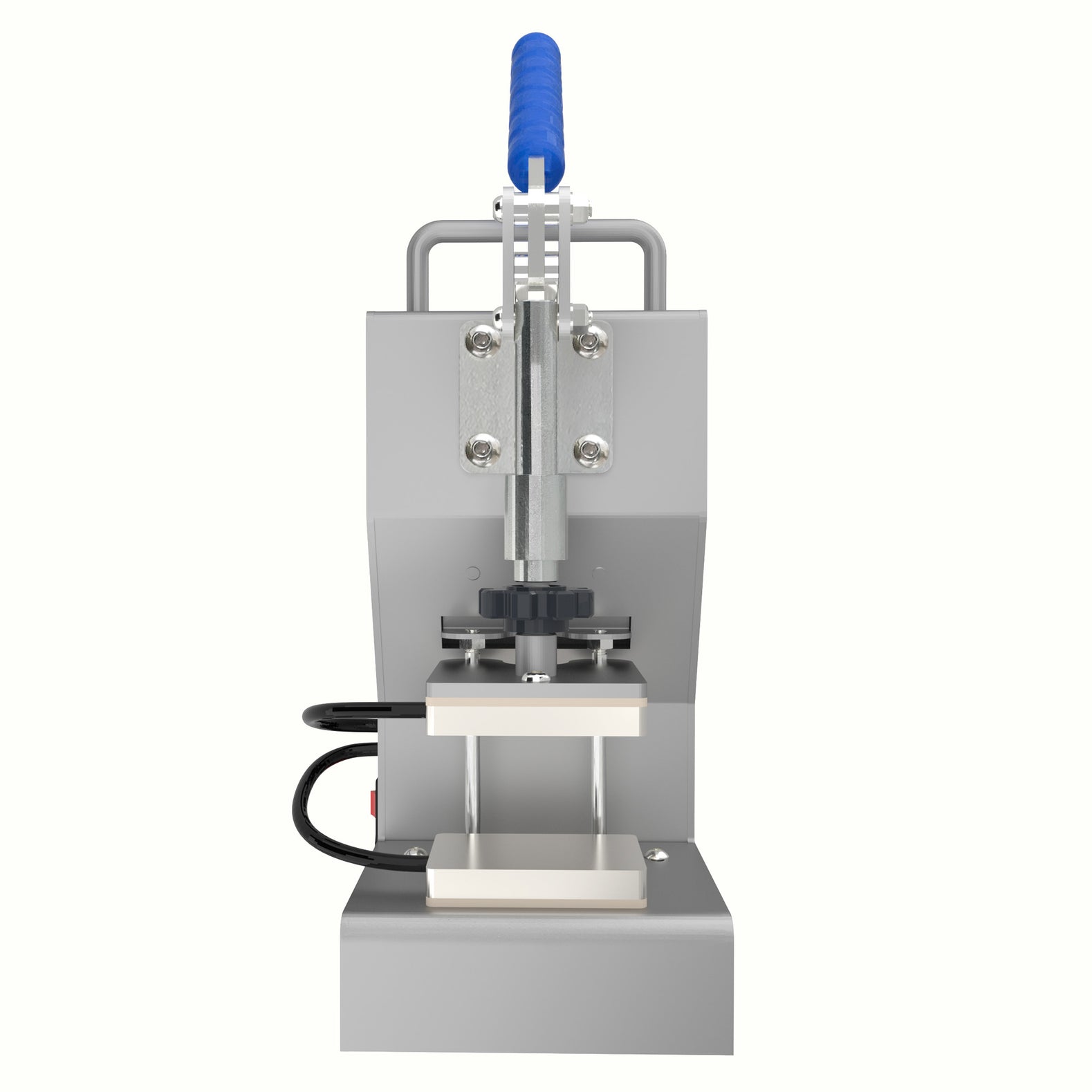

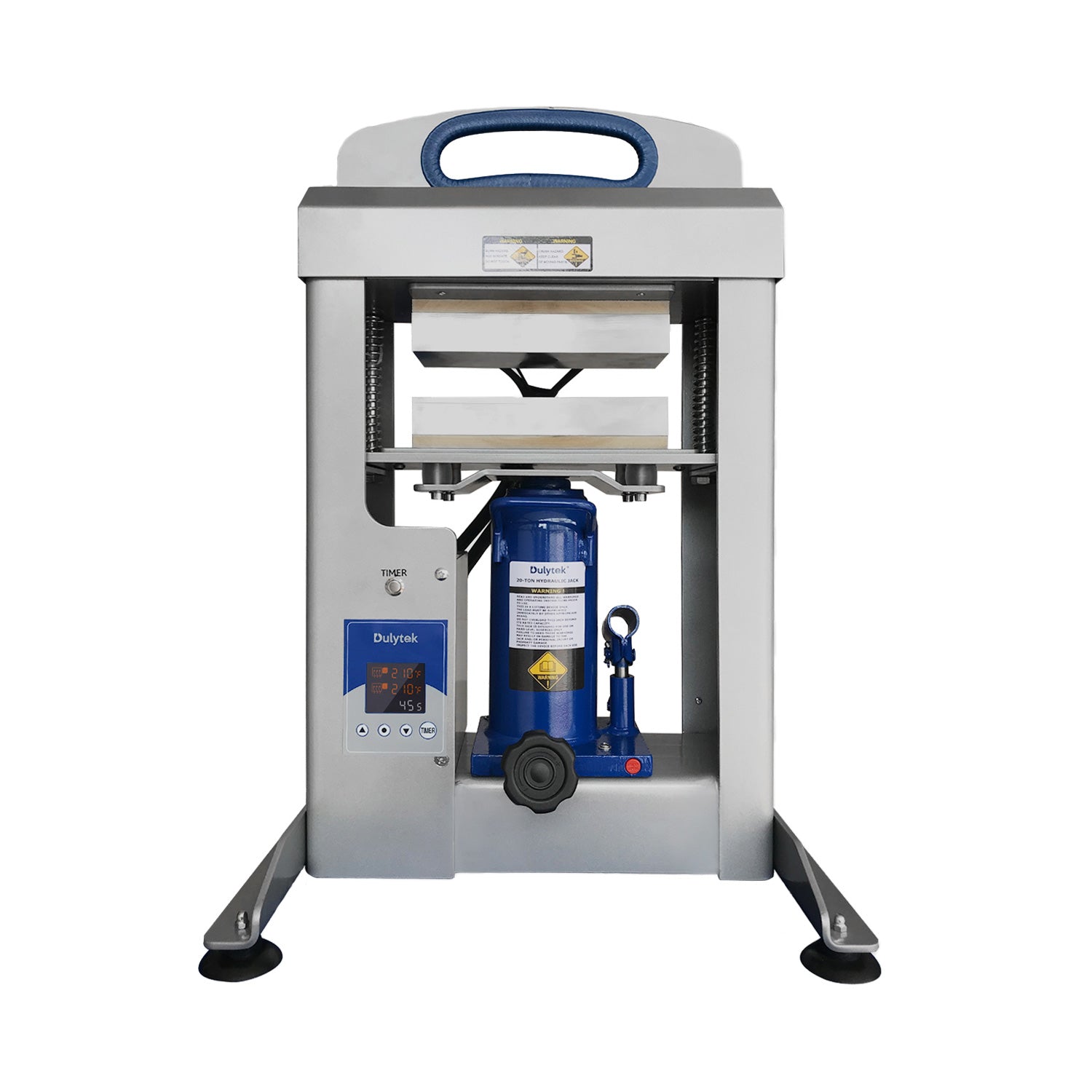

Dulytek DM800 Min Compact Rosin Press, 800 lb Dulytek DM2 Portable Rosin Press, 800 lb Dulytek 2.5 Ton Electric Rosin Press Dulytek DW8000 Rosin Press, 4 Ton 8000 lb Dulytek DHP5 Hydraulic Rosin Press, 5 T Dulytek DHP7 Hydraulic Rosin Press, 7 T Dulytek DHP20 Hydraulic Rosin Press, 20 T Dulytek DE40K Hybrid Rosin Press, 20 T
FORCE 1350 lb 4K lb / 2 T 5K lb / 2.5 T 8K lb /4 T 8K lb / 5 T 14K lb / 7 T 40K lb / 20 T 40K lb / 20 T
PLATE SIZE 2.5" x 3" 3" x 3" 3" x 4.8" 3" x 5" 3" x 4" 2.5" x 6" 3" x 8" 6" x 10"
WEIGHT 10 lb 28.5 lb 45 lb 53 lb 31 lb 34 lb 100 lb 558 lb
TYPE Manual Manual Hybrid Hybrid Hydraulic Hydraulic Hydraulic Hybrid
HIGHLIGHTS Mini, lightweight, economic Portable, affordable Versatile Plug-and-play, streamlined Affordable but powerful Robust and mighty Very powerful, high yield Industrial strength, largest plates
RETAIL PRICE $199 $249 $599 $899 $369 $479 $899 $5990

DIY Heat Plates

Please note that our heat plate kits are intended to be used with standard A- or H-type workshop arbor hydraulic or pneumatic presses (not included with plate kit purchases). When selecting a plate kit, please make sure it matches your arbor press capacity (FORCE) and, if necessary, ram diameter.

MODEL DHPK35 DHPK36 DHPK38 DHPK49

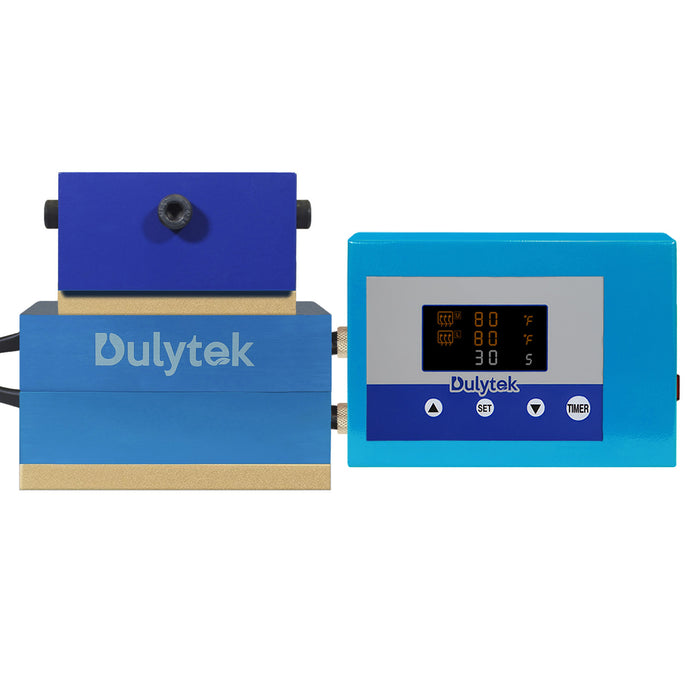

Dulytek DHPK35 3x5 DIY Heat Plate Kit, 3-15 Ton Dulytek DHPK36 3x6 DIY Heat Plate Kit, 10-20 Ton Dulytek DHPK38 3x8 DIY Heat Plate Kit, 15-30 Ton Dulytek DHPK49 4x9 DIY Heat Plate Kit, 20-40 Ton
FORCE 3 - 15 Ton 10 - 20 Ton 15 - 30 Ton 20 - 40 Ton
PLATE SIZE 3" x 5" 3" x 6" 3" x 8" 4" x 9"
WEIGHT 12 lb 12.8 lb 13.5 lb 21.5 lb
TYPE DIY / Retrofit DIY / Retrofit DIY / Retrofit DIY / Retrofit
RAM DIAMETER 2.16" N/A N/A N/A
RETAIL PRICE $219 $309 $359 $409
