Dulytek® Retrofit Rosin Heat Plate Kit, 3" x 5" Food-Grade Anodized Aluminum Dual Heating Plates, for 3 - 15 Ton Shop Presses

$199.00
LOGIN TO ACCOUNT TO EARN POINTS & GET REWARDS

Hurry! Only 89 Left in Stock!

110V for North America
220V for Europe and Australia
PRODUCT INFORMATION
Warranty
Product support
CUSTOMER REVIEWS
PRODUCT INFORMATION

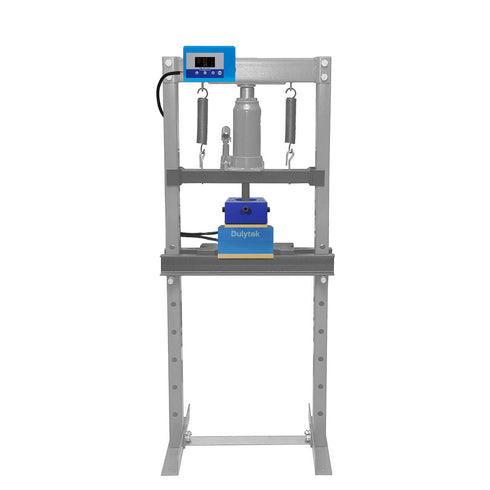

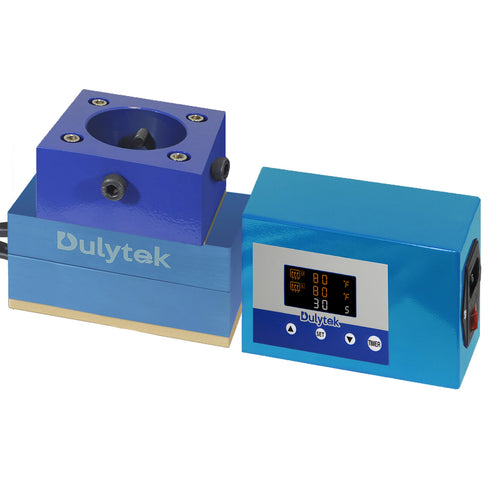

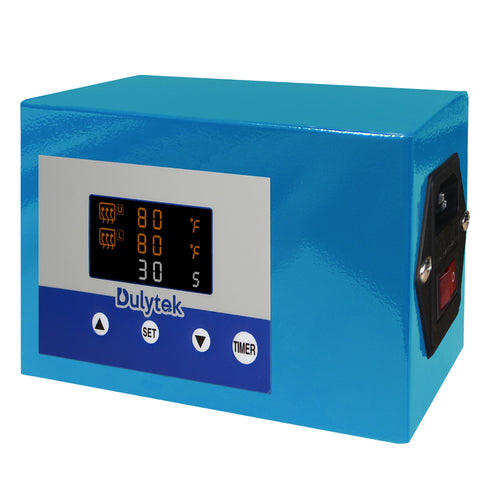

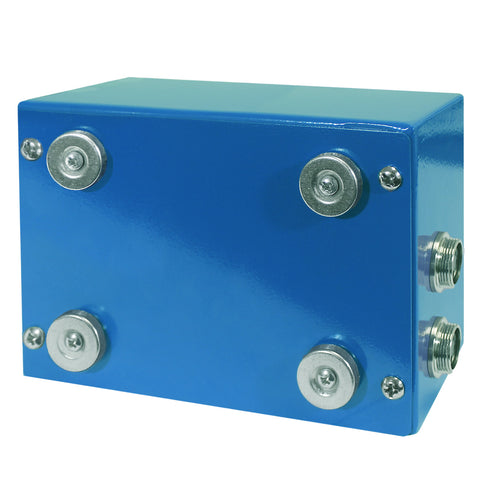

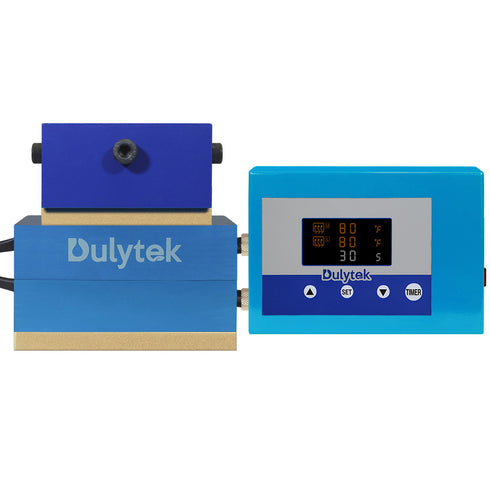

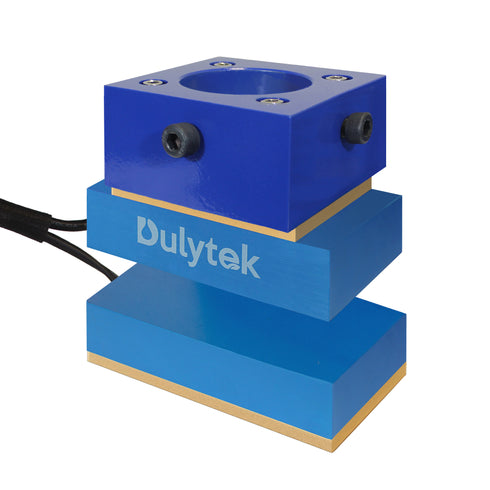

Dulytek® Retrofit Rosin Heat Plate Kit is designed to work with 3 to 15 ton hydraulic or pneumatic shop presses and comes with 3 by 5 inch anodized aluminum plates and a compact two-channel temperature and timer controller with magnetic feet for easy mounting anywhere on your press. This unit is perfect for people to take advantages of their shop presses to produce the highest quality product and press larger quantities at once.

The plate kit is available in two versions: 110V for North American and 220V  for European and Australian customers. Please note that the 220V plates are not shipped to US and Canada addresses.

Technical Specifications:

  • Maximum pressure: Up to 30000 lb / 15 Ton
  • Maximum ram diameter: 2.16 inch / 55 mm

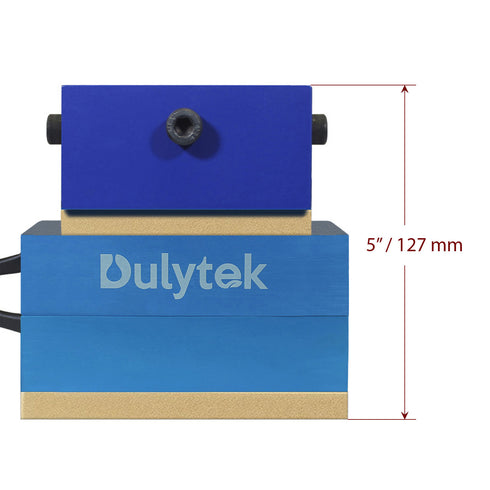

  • Heating plate size: 3 x 5 inch / 76 x 127 mm
  • Maximum temperature: 302 °F / 150 °C
  • Timer range: 0 - 999 sec
  • Voltage: 110 V / 220 V
  • Power: 610 W
  • Product weight: 12 lbs / 5.4 kg
  • Certifications: CE / RoHS
  • Limited warranty: 6 months for controllers; 2 years for other parts
  • Discreet Packaging
Warranty
Dulytek warrants that for the period of two (2) years from the date of shipping, our heat presses shall be free from defects in frame materials and workmanship under normal use provided the presses are correctly installed, used, and maintained. Some quickly worn-down parts such as heat press handles and bottle jacks are covered for the period of three (3) months. Please see our Warranty page for details.
CUSTOMER REVIEWS

Customer Reviews

Based on 4 reviews
75%
(3)
0%
(0)
25%
(1)
0%
(0)
0%
(0)
A
Andrew Klee
A great buy.

Very happy with these plates. They fit my press perfectly and perform great. I may add a stronger magnet to the bottom of the controller for mounting but is fine for now. A great product.

T
Tod from France
Works great and save $

The plate kit saved me a lot of money. It has been working great with my shop press.

C
Chris J.
Mixed reactions

Ok, first of all I waited 4 months for this kit (willingly) packaging 5 stars well protected. Design 3 stars, which sucks b.c. they put in a lot of work into this up until how the wiring connects to the heat plates, machinests are not electrical guys, the wiring could have mated up so much better, I'm constantly worried I'm going to break the wires at this spot. Controls are fairly easy to use so a 4. Price is a 4.5, sadly it comes down to the wiring connection that gives it a 3. Temperature has been with /- 15 degrees in my tests, so operationally a 4 score there.

A
Arizno
Perfect For My Shop Press

At first I was worried that since this unit did not have a cage that I would have a problem keeping it in line. Nope. It work perfectly. If you are interested in pressing a crap ton of product then a caged unit may be better suited. It is extremely well built and has a killer blue Metallic look. Love my new Dulytek.


QUESTIONS & ANSWERS
Ask a Question
  • Hello, I am interested in these plates, but the information indicates that it is not possible to send 220v plates within the US territory. My intention is to make the purchase and send it to a member of my family who lives in the US, who will take care of the shipment to Chile, is it possible to make shipments that way?

    I suggest to contact our support directly at help@dulytek.com  with any custom order questions.

  • Hi Dulytek, does your Dulytek® Retrofit Rosin Heat Plate Kit, 3 x 4 Inches have a version 220v instead of 110v for europe ? Regards, Kevin BIDEAU

    For 3"x4" Dulytek® Retrofit Rosin Heat Plate Kit, we do offer both 220/240v and 110/120v versions.

  • I have a gen 1 retro press for my shop press, lost the instructions/directions and would like another copy

    Sure. Please feel free to email your request to help@dulytek.com. They will be happy to help you.

  • Does this press show bar pressure

    The controller doesn't show the pressure; it is for entering press parameters: temperature, temperature scale, and timer settings.

  • Does it come with a power cable?

    Yes, it does come with a power cable.
